Showing 1–16 of 23 results

•

  136-1000-06D – Lightweight Medium Pressure Flared Hose Fittings – Straight, Flared

  136-1000-06D

  Dimension H In: '0.283

  Dimension K (in): '0.688

  Dimension M (in): '0.80

  Hose Size In: '3/8

  Insert Assembly No: 137-1000-06D

  Mil Spec: M83798/1

  NSN No.: '4730-00-613-1859

  Socket Assembly No: '136-900-06D

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-1045-06D – Lightweight Medium Pressure Flared Hose Fittings – 45º Elbow, Flared, Bent Tube

  136-1045-06D

  Dimension G In: '0.446

  Dimension H In: '0.283

  Dimension K (in): '0.688

  Dimension M (in): '0.80

  Dimension R In: '0.50

  Hose Size In: '3/8

  Insert Assembly No: 137-1045-06D

  Mil Spec: M83798/2

  NSN No.: '4730-00-541-8234

  Socket Assembly No: '136-900-06D

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-1090-06D – Lightweight Medium Pressure Flared Hose Fittings – 90º Elbow, Flared, Bent Tube

  136-1090-06D

  Dimension G In: '0.922

  Dimension H In: '0.283

  Dimension K (in): '0.688

  Dimension M (in): '0.80

  Dimension R In: '0.50

  Hose Size In: '3/8

  Insert Assembly No: 137-1090-06D

  Mil Spec: M83798/3

  NSN No.: '4730-00-720-1166

  Socket Assembly No: '136-900-06D

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-2000-06D – Lightweight Medium Pressure Flareless Hose Fittings – Straight, Flareless

  136-2000-06D

  Dimension H In: '0.283

  Dimension K (in): '0.688

  Dimension M (in): '0.80

  Hose Size In: '3/8

  Insert Assembly No: 137-2000-06D

  Mil Spec: M83798/4

  Socket Assembly No: '136-900-06D

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-2045-06D – Lightweight Medium Pressure Flareless Hose Fittings – 45º Elbow, Flareless, Bent Tube

  136-2045-06D

  Dimension G In: '0.578

  Dimension H In: '0.283

  Dimension K (in): '0.688

  Dimension M (in): '0.80

  Dimension R In: '0.50

  Hose Size In: '3/8

  Insert Assembly No: 137-2045-06D

  Mil Spec: M83798/5

  Socket Assembly No: '136-900-06D

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-2090-06D – Lightweight Medium Pressure Flareless Hose Fittings – 90º Elbow, Flareless, Bent Tube

  136-2090-06D

  Dimension G In: '1.112

  Dimension H In: '0.283

  Dimension K (in): '0.688

  Dimension M (in): '0.80

  Dimension R In: '0.50

  Hose Size In: '3/8

  Insert Assembly No: 137-2090-06D

  Mil Spec: M83798/6

  Socket Assembly No: '136-900-06D

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05200-06 – Medium Pressure TFE Flared Hose Fittings – Straight, Flared

  148-05200-06

  Dimension H In: '0.263

  Dimension K (in): '0.688

  Dimension L In: '0.688

  Hose Size In: '3/8

  Insert Assembly No: 148-54759

  Mil Spec: MS27053

  NSN No.: '4730-00-618-8486 4730-00-982-9736

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05212-06 – Medium Pressure TFE Flared Hose Fittings – 45º Elbow, Flared, Forged

  148-05212-06

  Dimension G In: '0.389

  Dimension H In: '0.263

  Dimension K (in): '0.688

  Dimension L In: '0.688

  Hose Size In: '3/8

  Insert Assembly No: 148-31971

  Mil Spec: MS27059

  NSN No.: '4730-00-889-2468

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05214-06 – Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Forged

  148-05214-06

  Dimension G In: '0.720

  Dimension H In: '0.263

  Dimension K (in): '0.688

  Dimension L In: '0.688

  Hose Size In: '3/8

  Insert Assembly No: 148-31983

  Mil Spec: MS27060

  NSN No.: '4730-00-013-6969

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05216-06 – Medium Pressure TFE Flareless Hose Fittings – Straight, Flareless

  148-05216-06

  Dimension H In: '0.265

  Dimension K (in): '0.688

  Dimension L In: '0.688

  Hose Size In: '3/8

  Insert Assembly No: 148-30343

  Mil Spec: MS27381

  NSN No.: '4730-00-053-0379

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05217-06 – Medium Pressure TFE Flareless Hose Fittings – 45º Elbow, Flareless, Forged

  148-05217-06

  Dimension G In: '0.526

  Dimension H In: '0.265

  Dimension K (in): '0.688

  Dimension L In: '0.688

  Hose Size In: '3/8

  Insert Assembly No: 148-07080

  Mil Spec: MS27384

  NSN No.: '4730-00-128-9819

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

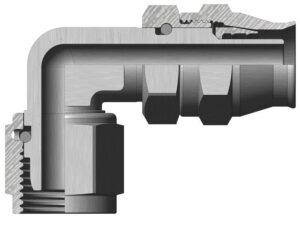

  148-05218-06 – Medium Pressure TFE Flareless Hose Fittings – 90º Elbow, Flareless, Forged

  148-05218-06

  Dimension G In: '0.915

  Dimension H In: '0.265

  Dimension K (in): '0.688

  Dimension L In: '0.688

  Hose Size In: '3/8

  Insert Assembly No: 148-07084

  Mil Spec: MS27385

  NSN No.: '4730-00-053-0380

  Thread Size - T: 9/16"-18

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-1045-06 – Medium Pressure Rubber Flared Hose Fittings – 45º Elbow, Flared

  148-1045-06

  Dimension G In: '0.444

  Dimension H In: '0.234

  Dimension K (in): '0.688

  Dimension M (in): '0.80

  Dimension R In: '0.50

  Hose Size In: '3/8

  Insert Assembly No: 148-1145-06

  Mil Spec: MS27226

  NSN No.: '4730-00-830-6022

  Thread Size - T: 9/16"-18

  Type 1: Complete Assembly

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-1090-06 – Medium Pressure Rubber Flared Hose Fittings – 90º Elbow, Flared

  148-1090-06

  Dimension G In: '0.922

  Dimension H In: '0.234

  Dimension K (in): '0.688

  Dimension M (in): '0.80

  Dimension R In: '0.50

  Hose Size In: '3/8

  Insert Assembly No: 148-1190-06

  Mil Spec: MS27224

  NSN No.: '4730-00-886-2369

  Thread Size - T: 9/16"-18

  Type 1: Complete Assembly

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-2000-06 – Medium Pressure Rubber Flareless Hose Fittings – Straight, Flareless

  148-2000-06

  Dimension H In: '0.234

  Dimension K (in): '0.688

  Dimension M (in): '0.80

  Insert Assembly No: 148-2100-06

  NSN No.: 4730-00-068-9665

  Socket Assembly No: '148-32106

  Thread Size - T: 9/16"-18

  Type 1: Complete Assembly

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-2045-06 – Medium Pressure Rubber Flareless Hose Fittings – 45º Elbow, Flareless

  148-2045-06

  Dimension G In: '0.578

  Dimension H In: '0.234

  Dimension K (in): '0.688

  Dimension M (in): '0.80

  Dimension R In: '0.50

  Insert Assembly No: 148-2145-06

  Thread Size - T: 9/16"-18

  Type 1: Complete Assembly

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List
