Showing 1–16 of 24 results

•

  136-1000-08D – Lightweight Medium Pressure Flared Hose Fittings – Straight, Flared

  136-1000-08D

  Dimension H In: '0.378

  Dimension K (in): '0.875

  Dimension M (in): '1.010

  Hose Size In: '1/2

  Insert Assembly No: 137-1000-08D

  Mil Spec: M83798/1

  NSN No.: '4730-00-632-2002

  Socket Assembly No: '136-900-08D

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-1045-08D – Lightweight Medium Pressure Flared Hose Fittings – 45º Elbow, Flared, Bent Tube

  136-1045-08D

  Dimension G In: '0.457

  Dimension H In: '0.378

  Dimension K (in): '0.875

  Dimension M (in): '1.010

  Dimension R In: '0.50

  Hose Size In: '1/2

  Insert Assembly No: 137-1045-08D

  Mil Spec: M83798/2

  NSN No.: '4730-00-684-6394

  Socket Assembly No: '136-900-08D

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-1090-08D – Lightweight Medium Pressure Flared Hose Fittings – 90º Elbow, Flared, Bent Tube

  136-1090-08D

  Dimension G In: '0.938

  Dimension H In: '0.378

  Dimension K (in): '0.875

  Dimension M (in): '1.010

  Dimension R In: '0.50

  Hose Size In: '1/2

  Insert Assembly No: 137-1090-08D

  Mil Spec: M83798/3

  NSN No.: '4730-00-795-0945

  Socket Assembly No: '136-900-08D

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-2000-08D – Lightweight Medium Pressure Flareless Hose Fittings – Straight, Flareless

  136-2000-08D

  Dimension H In: '0.378

  Dimension K (in): '0.875

  Dimension M (in): '1.010

  Hose Size In: '1/2

  Insert Assembly No: 137-2000-08D

  Mil Spec: M83798/4

  NSN No.: '4730-00-966-0747

  Socket Assembly No: '136-900-08D

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-2045-08D – Lightweight Medium Pressure Flareless Hose Fittings – 45º Elbow, Flareless, Bent Tube

  136-2045-08D

  Dimension G In: '0.610

  Dimension H In: '0.378

  Dimension K (in): '0.875

  Dimension M (in): '1.010

  Dimension R In: '0.50

  Hose Size In: '1/2

  Insert Assembly No: 137-2045-08D

  Mil Spec: M83798/5

  Socket Assembly No: '136-900-08D

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-2090-08D – Lightweight Medium Pressure Flareless Hose Fittings – 90º Elbow, Flareless, Bent Tube

  136-2090-08D

  Dimension G In: '1.156

  Dimension H In: '0.378

  Dimension K (in): '0.875

  Dimension M (in): '1.010

  Dimension R In: '0.50

  Hose Size In: '1/2

  Insert Assembly No: 137-2090-08D

  Mil Spec: M83798/6

  NSN No.: '4730-01-389-7838

  Socket Assembly No: '136-900-08D

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05200-08 – Medium Pressure TFE Flared Hose Fittings – Straight, Flared

  148-05200-08

  Dimension H In: '0.348

  Dimension K (in): '0.875

  Dimension L In: '0.875

  Hose Size In: '1/2

  Insert Assembly No: 148-54760

  Mil Spec: MS27053

  NSN No.: '4730-00-889-2476

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05212-08 – Medium Pressure TFE Flared Hose Fittings – 45º Elbow, Flared, Forged

  148-05212-08

  Dimension G In: '0.465

  Dimension H In: '0.348

  Dimension K (in): '0.875

  Dimension L In: '0.875

  Hose Size In: '1/2

  Insert Assembly No: 148-31992

  Mil Spec: MS27059

  NSN No.: '4730-00-889-2467

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05214-08 – Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Forged

  148-05214-08

  Dimension G In: '0.830

  Dimension H In: '0.348

  Dimension K (in): '0.875

  Dimension L In: '0.875

  Hose Size In: '1/2

  Insert Assembly No: 148-31993

  Mil Spec: MS27060

  NSN No.: '4730-00-228-1106

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05216-08 – Medium Pressure TFE Flareless Hose Fittings – Straight, Flareless

  148-05216-08

  Dimension H In: '0.345

  Dimension K (in): '0.875

  Dimension L In: '0.875

  Hose Size In: '1/2

  Insert Assembly No: 148-30344

  Mil Spec: MS27381

  NSN No.: '4730-00-929-5705

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05217-08 – Medium Pressure TFE Flareless Hose Fittings – 45º Elbow, Flareless, Forged

  148-05217-08

  Dimension G In: '0.622

  Dimension H In: '0.348

  Dimension K (in): '0.875

  Dimension L In: '0.875

  Hose Size In: '1/2

  Insert Assembly No: 148-07081

  Mil Spec: MS27384

  NSN No.: '4730-00-143-9179

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

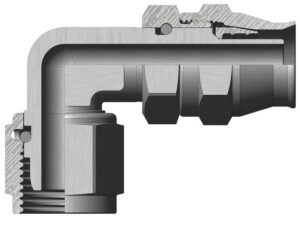

  148-05218-08 – Medium Pressure TFE Flareless Hose Fittings – 90º Elbow, Flareless, Forged

  148-05218-08

  Dimension G In: '1.052

  Dimension H In: '0.348

  Dimension K (in): '0.875

  Dimension L In: '0.875

  Hose Size In: '1/2

  Insert Assembly No: 148-07085

  Mil Spec: MS27385

  NSN No.: '4730-00-119-9854

  Thread Size - T: 3/4"-16

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-1045-08D – Medium Pressure Rubber Flared Hose Fittings – 45º Elbow, Flared

  148-1045-08D

  Dimension G In: '0.456

  Dimension H In: '0.358

  Dimension K (in): '0.875

  Dimension M (in): '1.010

  Dimension R In: '0.50

  Hose Size In: '1/2

  Insert Assembly No: 148-1145-08D

  Mil Spec: MS27226

  NSN No.: '4730-00-595-2598

  Thread Size - T: 3/4"-16

  Type 1: Complete Assembly

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-1090-08D – Medium Pressure Rubber Flared Hose Fittings – 90º Elbow, Flared

  148-1090-08D

  Dimension G In: '0.938

  Dimension H In: '0.358

  Dimension K (in): '0.875

  Dimension M (in): '1.010

  Dimension R In: '0.50

  Hose Size In: '1/2

  Insert Assembly No: 148-1190-08D

  Mil Spec: MS27224

  NSN No.: '4730-00-540-1735

  Thread Size - T: 3/4"-16

  Type 1: Complete Assembly

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-2000-08D – Medium Pressure Rubber Flareless Hose Fittings – Straight, Flareless

  148-2000-08D

  Dimension H In: '0.358

  Dimension K (in): '0.875

  Dimension M (in): '1.010

  Insert Assembly No: 148-2100-08D

  NSN No.: 4730-00-068-9664

  Socket Assembly No: '148-32108

  Thread Size - T: 3/4"-16

  Type 1: Complete Assembly

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-2045-08D – Medium Pressure Rubber Flareless Hose Fittings – 45º Elbow, Flareless

  148-2045-08D

  Dimension G In: '0.610

  Dimension H In: '0.358

  Dimension K (in): '0.875

  Dimension M (in): '1.010

  Dimension R In: '0.50

  Insert Assembly No: 148-2145-08D

  Thread Size - T: 3/4"-16

  Type 1: Complete Assembly

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List
