Showing all 3 results
148-05219-10

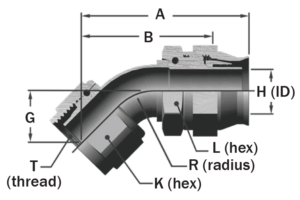

Dimension G In: '0.725
Dimension H In: '0.443
Dimension K (in): '1.000
Dimension L In: '1.000
Dimension R In: '0.63
Hose Size In: '5/8
Insert Assembly No: 148-30415
Mil Spec: Ms27382
NSN No.: '4730-00-008-4806
Thread Size - T: 7/8"-14
Type 1: Complete Fitting
Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
148-05219-12
Dimension G In: '0.800
Dimension H In: '0.563
Dimension K (in): '1.250
Dimension L In: '1.125
Dimension R In: '0.84
Hose Size In: '3/4
Insert Assembly No: 148-30416
Mil Spec: Ms27382
NSN No.: '4730-00-462-0213
Thread Size - T: 1-1/16"-12
Type 1: Complete Fitting
Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
148-05219-16
Dimension G In: '0.989
Dimension H In: '0.831
Dimension K (in): '1.500
Dimension L In: '1.500
Dimension R In: '0.97
Hose Size In: '1
Insert Assembly No: 148-30417
Mil Spec: Ms27382
NSN No.: '4730-00-007-2201
Thread Size - T: 1-5/16"-12
Type 1: Complete Fitting
Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
