Fittings in accordance with MIL-DTL-27272.
Specifications for Fittings
Material: Corrosion resistant steel in accordance with MIL-DTL-25579. Aluminum option available upon request.
Finish: Passivated per SAE-AMS2700.
Design: Flared and flareless fittings. Sizes -3 through -8 are forged design. Sizes -10 through -16 are bent tube design. Hydrasearch field-attachable elbow fittings are adjustable in angular rotation through 360°.

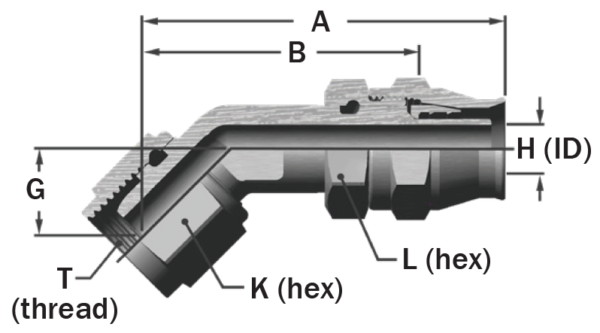

| Weight | 0.139 lbs |
|---|---|
| Dimension G In | '0.526 |
| Dimension H In | '0.265 |
| Dimension K (in) | |
| Dimension L In | '0.688 |
| Hose Size In | '3/8 |
| Insert Assembly No | 148-07080 |
| Mil Spec | MS27384 |
| NSN No. | |
| Thread Size - T | |
| Type 1 | Complete Fitting |
