Fittings in accordance with MIL-DTL-27272.
Specifications for Fittings
Material: Corrosion resistant steel in accordance with MIL-DTL-25579. Aluminum option available upon request.
Finish: Passivated per SAE-AMS2700.

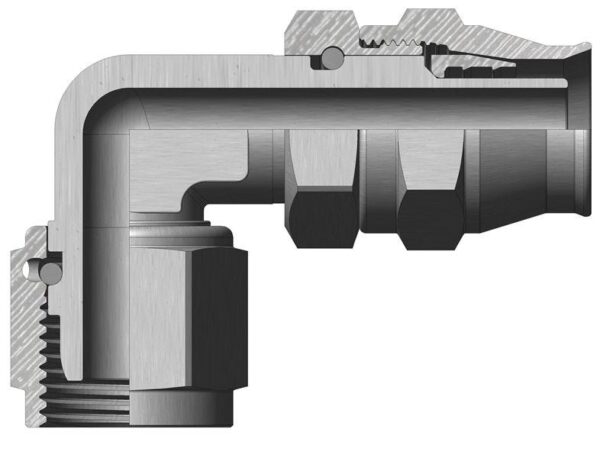

Design: Flared and flareless fittings. Sizes -3 through -8 are forged design. Sizes -10 through -16 are bent tube design. Hydrasearch field-attachable elbow fittings are adjustable in angular rotation through 360°.
Weight | 0.17 lbs |
---|---|

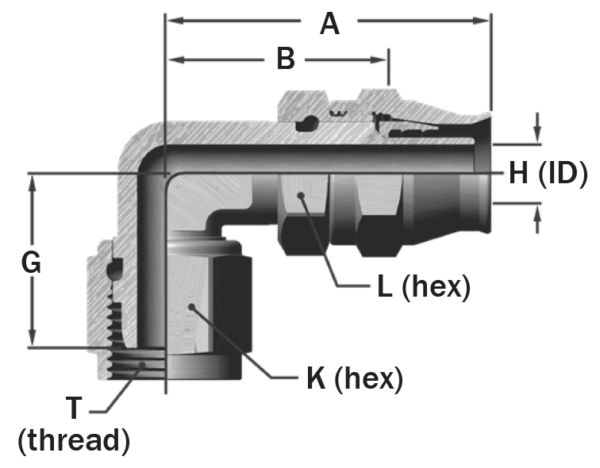

Dimension G In | '0.915 |
Dimension H In | '0.265 |
Dimension K (in) | |
Dimension L In | '0.688 |
Hose Size In | '3/8 |
Insert Assembly No | 148-07084 |
Mil Spec | MS27385 |
NSN No. | |
Thread Size - T | |
Type 1 | Complete Fitting |
