Fittings in accordance with MIL-DTL-27272.
Specifications for Fittings
Material: Corrosion resistant steel in accordance with MIL-DTL-25579. Aluminum option available upon request.
Finish: Passivated per SAE-AMS2700.
Design: Flared and flareless fittings. Sizes -3 through -8 are forged design. Sizes -10 through -16 are bent tube design. Hydrasearch field-attachable elbow fittings are adjustable in angular rotation through 360°.
| Weight | 0.482 lbs |
|---|---|

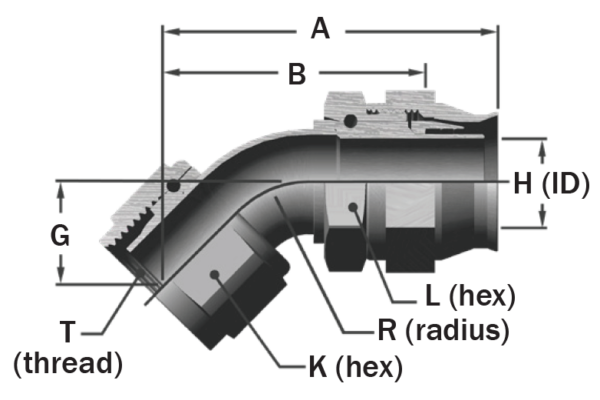

| Dimension G In | '0.800 |
| Dimension H In | '0.563 |
| Dimension K (in) | |
| Dimension L In | '1.125 |
| Dimension R In | '0.84 |
| Hose Size In | '3/4 |
| Insert Assembly No | 148-30416 |
| Mil Spec | Ms27382 |
| NSN No. | |
| Thread Size - T | |
| Type 1 | Complete Fitting |
| Notes | Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. |
