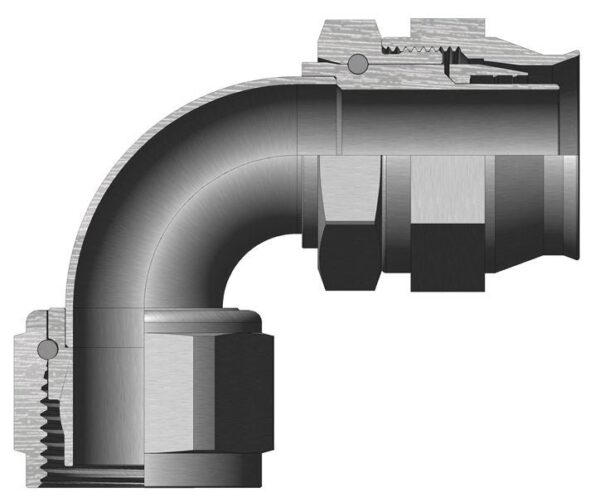

148-05220-12 – Medium Pressure TFE Flareless Hose Fittings – 90º Elbow, Flareless, Bent Tube

148-05220-12

Description

Fittings in accordance with MIL-DTL-27272.

Specifications for Fittings
Material: Corrosion resistant steel in accordance with MIL-DTL-25579. Aluminum option available upon request.
Finish: Passivated per SAE-AMS2700.
Design: Flared and flareless fittings. Sizes -3 through -8 are forged design. Sizes -10 through -16 are bent tube design. Hydrasearch field-attachable elbow fittings are adjustable in angular rotation through 360°.

Additional information

Weight 0.507 lbs
Dimension G In

'1.626

Dimension H In

'0.563

Dimension K (in)

Dimension L In

'1.125

Dimension R In

'0.84

Hose Size In

'3/4

Insert Assembly No

148-30476

Mil Spec

Ms27383

NSN No.

Thread Size - T

Type 1

Complete Fitting
