Showing 1–16 of 26 results

•

  136-1000-03 – Lightweight Medium Pressure Flared Hose Fittings – Straight, Flared

  136-1000-03

  Dimension H In: '0.111

  Dimension K (in): '0.500

  Dimension M (in): '0.58

  Hose Size In: '3/16

  Insert Assembly No: 137-1000-03

  Mil Spec: M83798/1

  NSN No.: '4730-00-585-7496

  Socket Assembly No: '136-900-03D

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-1045-03 – Lightweight Medium Pressure Flared Hose Fittings – 45º Elbow, Flared, Bent Tube

  136-1045-03

  Dimension G In: '0.340

  Dimension H In: '0.111

  Dimension K (in): '0.500

  Dimension M (in): '0.58

  Dimension R In: '0.375

  Hose Size In: '3/16

  Insert Assembly No: 137-1045-03

  Mil Spec: M83798/2

  NSN No.: '4730-00-891-1948

  Socket Assembly No: '136-900-03D

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-1090-03 – Lightweight Medium Pressure Flared Hose Fittings – 90º Elbow, Flared, Bent Tube

  136-1090-03

  Dimension G In: '0.654

  Dimension H In: '0.111

  Dimension K (in): '0.500

  Dimension M (in): '0.58

  Dimension R In: '0.375

  Hose Size In: '3/16

  Insert Assembly No: 137-1090-03

  Mil Spec: M83798/3

  NSN No.: '4730-00-891-9343

  Socket Assembly No: '136-900-03D

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-2000-03 – Lightweight Medium Pressure Flareless Hose Fittings – Straight, Flareless

  136-2000-03

  Dimension H In: '0.111

  Dimension K (in): '0.500

  Dimension M (in): '0.58

  Hose Size In: '3/16

  Insert Assembly No: 137-2000-03

  Mil Spec: M83798/4

  Socket Assembly No: '136-900-03D

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-2045-03 – Lightweight Medium Pressure Flareless Hose Fittings – 45º Elbow, Flareless, Bent Tube

  136-2045-03

  Dimension G In: '0.480

  Dimension H In: '0.111

  Dimension K (in): '0.500

  Dimension M (in): '0.58

  Dimension R In: '0.375

  Hose Size In: '3/16

  Insert Assembly No: 137-2045-03

  Mil Spec: M83798/5

  Socket Assembly No: '136-900-03D

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  136-2090-03 – Lightweight Medium Pressure Flareless Hose Fittings – 90º Elbow, Flareless, Bent Tube

  136-2090-03

  Dimension G In: '0.867

  Dimension H In: '0.111

  Dimension K (in): '0.500

  Dimension M (in): '0.58

  Dimension R In: '0.375

  Hose Size In: '3/16

  Insert Assembly No: 137-2090-03

  Mil Spec: M83798/6

  Socket Assembly No: '136-900-03D

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  147-29033 – Low Pressure Hose Fittings – Straight, Flared

  147-29033

  Hose Size In: '3/16

  Ms Part No: Ms27404-3D

  NSN No.: '4730-00-278-5688

  Thread Size - T: 3/8"-24

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05200-3/-4 – Medium Pressure TFE Flared Hose Fittings – Straight, Flared

  148-05200-3/-4

  Dimension H In: '0.163

  Dimension K (in): '0.500

  Dimension L In: '0.562

  Hose Size In: '3/16

  Insert Assembly No: 148-33291

  Mil Spec: MS27053

  NSN No.: '4730-00-007-2199

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05212-3/-4 – Medium Pressure TFE Flared Hose Fittings – 45º Elbow, Flared, Forged

  148-05212-3/-4

  Dimension G In: '0.283

  Dimension H In: '0.163

  Dimension K (in): '0.500

  Dimension L In: '0.562

  Hose Size In: '3/16

  Insert Assembly No: 148-33274

  Mil Spec: MS27059

  NSN No.: '4730-00-007-2198

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05214-3/-4 – Medium Pressure TFE Flared Hose Fittings – 90º Elbow, Flared, Forged

  148-05214-3/-4

  Dimension G In: '0.530

  Dimension H In: '0.163

  Dimension K (in): '0.500

  Dimension L In: '0.562

  Hose Size In: '3/16

  Insert Assembly No: 148-33282

  Mil Spec: MS27060

  NSN No.: '4730-00-119-9857

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05216-3/-4 – Medium Pressure TFE Flareless Hose Fittings – Straight, Flareless

  148-05216-3/-4

  Dimension H In: '0.163

  Dimension K (in): '0.500

  Dimension L In: '0.562

  Hose Size In: '3/16

  Insert Assembly No: 148-33279

  Mil Spec: MS27381

  NSN No.: '4730-00-246-9979

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-05217-3/-4 – Medium Pressure TFE Flareless Hose Fittings – 45º Elbow, Flareless, Forged

  148-05217-3/-4

  Dimension G In: '0.432

  Dimension H In: '0.163

  Dimension K (in): '0.500

  Dimension L In: '0.562

  Hose Size In: '3/16

  Insert Assembly No: 148-33174

  Mil Spec: MS27384

  NSN No.: '4730-00-007-2196

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

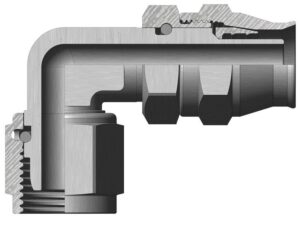

  148-05218-3/-4 – Medium Pressure TFE Flareless Hose Fittings – 90º Elbow, Flareless, Forged

  148-05218-3/-4

  Dimension G In: '0.611

  Dimension H In: '0.163

  Dimension K (in): '0.500

  Dimension L In: '0.562

  Hose Size In: '3/16

  Insert Assembly No: 148-33175

  Mil Spec: MS27385

  NSN No.: '4730-00-007-2200

  Thread Size - T: 3/8"-24

  Type 1: Complete Fitting

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-1045-03 – Medium Pressure Rubber Flared Hose Fittings – 45º Elbow, Flared

  148-1045-03

  Dimension A In: 1.8

  Dimension B In: '1.14

  Dimension G In: '0.376

  Dimension H In: '0.126

  Dimension K (in): '0.500

  Dimension M (in): '0.58

  Dimension R In: '0.38

  Hose Size In: '3/16

  Insert Assembly No: 148-1145-03

  Mil Spec: MS27226

  Thread Size - T: 3/8"-24

  Type 1: Complete Assembly

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-1090-03 – Medium Pressure Rubber Flared Hose Fittings – 90º Elbow, Flared

  148-1090-03

  Dimension G In: '0.752

  Dimension H In: '0.126

  Dimension K (in): '0.500

  Dimension M (in): '0.58

  Dimension R In: '0.38

  Hose Size In: '3/16

  Insert Assembly No: 148-1190-03

  Mil Spec: MS27224

  NSN No.: '4730-01-442-1832

  Thread Size - T: 3/8"-24

  Type 1: Complete Assembly

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List

•

  148-2000-03 – Medium Pressure Rubber Flareless Hose Fittings – Straight, Flareless

  148-2000-03

  Dimension H In: '0.126

  Dimension K (in): '0.500

  Dimension M (in): '0.58

  Insert Assembly No: 148-2100-03

  Socket Assembly No: '148-32103

  Thread Size - T: 3/8"-24

  Type 1: Complete Assembly

  Notes: Dimension B: Cutoff Factor Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions. Part Col

  Compare QUOTE
  Request Information

  Product successfully added to the Quote List
