Types of Boat Cleats : How to Choose the Right Size, Style, and Material

4 min read

Choose cleat size by rope size, boat size, load, and deck strength.
Open-base, stud, tapped, weld-on, and dock cleats fit different jobs.
Bronze and 316 stainless steel are good boat materials. Galvanized iron is often used on docks.
Strong bolts, a backing plate, and regular checks are just as important as the cleat.

Quick Answer

A boat cleat is a metal fitting used to hold a dock line. To choose one, match its size to the rope, boat, load, and mounting area. Pick a style that fits the way it will be attached. Bronze and 316 stainless steel work well on boats, while galvanized iron is often used on docks. Good backing, strong bolts, and checks help the cleat stay safe and secure for years.

What Does a Boat Cleat Do?

A cleat gives a dock line a firm place to hold. The line may keep a boat beside a dock. It may also hold a spring line or a fender line. Wind, waves, moving water, and boat wakes can pull hard on the line.

The pull does not stop at the cleat. It moves through the bolts and into the deck. A backing plate helps spread this force over a wider area. A weak deck or loose bolt can fail even when the cleat is large.

Think of the line, cleat, bolts, backing plate, and deck as one system. Hydrasearch’s marine deck hardware range also includes chocks, hawse pipes, and mooring bitts for safe line control.

Common Types of Boat Cleats

Cleat style	How it mounts	Common use
Open-base cleat	Screws or bolts pass through holes in the open base	Deck lines and general boat use
Stud-mounted cleat	Hidden studs pass through the deck	A clean look when the deck can be reached from below
Heavy-duty stud cleat	Larger studs and a stronger body	Higher loads on a strong, backed deck
Tapped cleat	Bolts turn into threaded holes in the cleat	Decks made for a set bolt pattern
Weld-on cleat	The cleat is welded to a metal base	Metal boats and workboat structures
Dock cleat	Bolts fasten the cleat to a dock	Holding a boat from the shore side

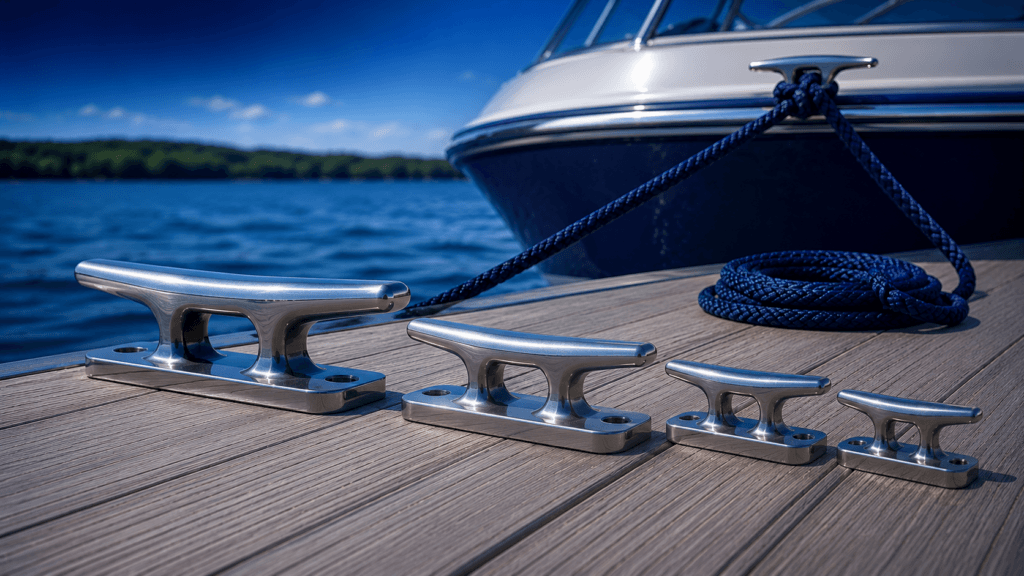

How to Choose the Right Cleat Size

The cleat needs enough room for the rope to wrap around its horns. A cleat that is too small can make the line pile up. This can make the line harder to tie and release.

A common starting rule is one inch of cleat length for each 1/16 inch of rope width. Use the table only as a first check.

Rope width	Starting cleat length
3/8 inch	About 6 inches
1/2 inch	About 8 inches
5/8 inch	About 10 inches
3/4 inch	About 12 inches
1 inch	About 16 inches

This rule does not tell you how much load the cleat can hold. A heavy boat may need a stronger cleat and deck, even when the rope fits. Also think about wind, waves, current, boat use, and sudden pulls.

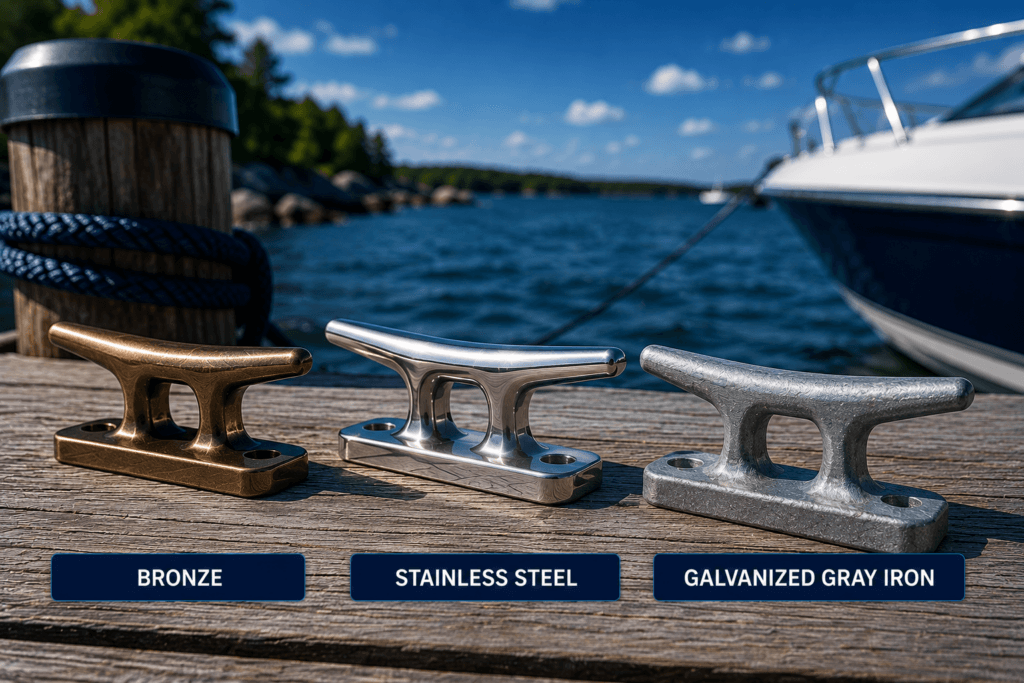

Choosing the Right Material

Bronze

Marine bronze handles salt water well and has been used on boats for many years. It also works well near other bronze parts.

316 Stainless Steel

316 stainless steel is strong and has a bright, clean finish. It is a common choice for deck hardware. It still needs care. Salt and dirt can stay under the base and cause small pits. Hydrasearch explains this risk in its guide to corrosion-resistant marine hardware.

Galvanized Gray Iron

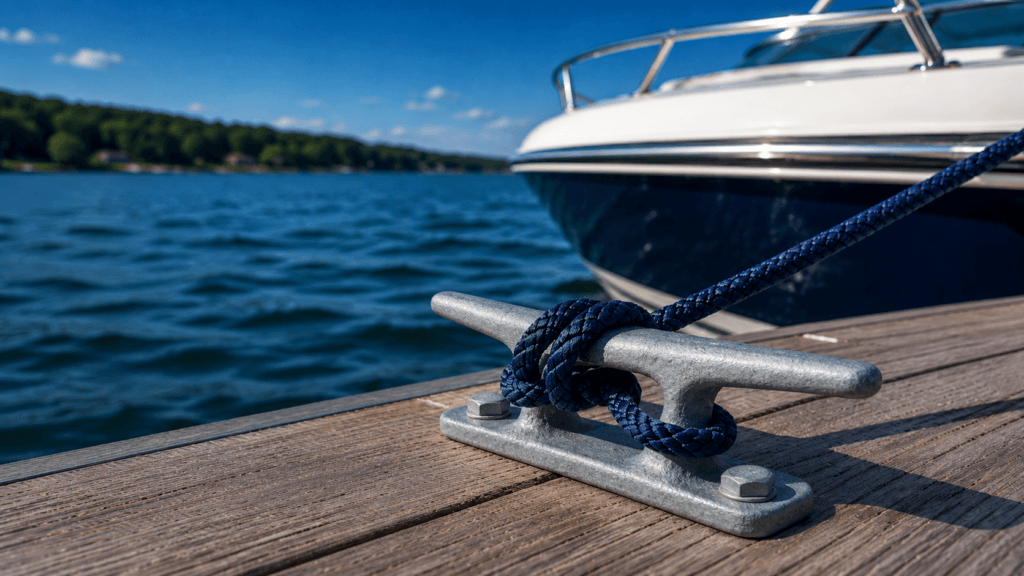

Galvanized gray iron is often used for dock cleats. The zinc coating helps slow rust. The 53DC1000 dock cleat is a 10-inch model. A dock cleat should not be used as a boat cleat unless the design calls for it.

Mounting the Cleat

Use bolts, washers, and a backing plate when the deck can be reached from below. The backing plate spreads the load. It should rest on sound material, not soft wood, cracked fiberglass, or thin metal.

Check under the deck before drilling. Look for wires, hoses, tanks, and frames. Use the right marine sealant around each hole. Do not tighten the bolts so hard that they crush the deck.

A weld-on cleat needs the right metal and a proper weld. A trained marine worker should check any job with high loads or weak deck areas.

Inspection and Care

Check each cleat before the boating season and during regular service. Look for loose bolts, cracks, bent horns, rust, green stains, pits, bad sealant, or a soft deck. The cleat should not move when the line pulls on it.

Rinse salt from the cleat with fresh water. Keep dirt from building up around the base. Check the rope too. Old, stiff, or damaged rope may not sit well on the cleat.

Check the cleat again after a hard docking event or a strong storm. A sudden pull can loosen bolts or harm the deck even when no damage is easy to see.

Choose the Cleat as a Full System

Start with the rope size and the load. Then choose the cleat style and material. Last, make sure the deck, bolts, and backing plate can carry the same load.
